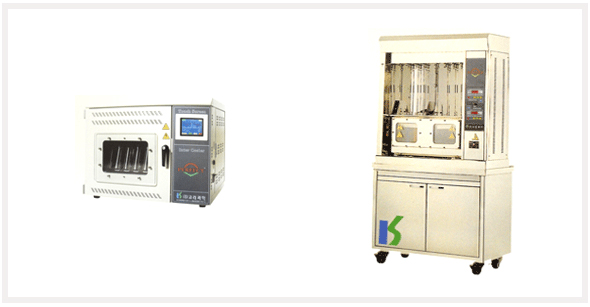

실험실설비
| Model | KSL - 24 Perfect |
|---|---|
| Temp_range | RT - 150℃ |
| Dimension (Out) | 750 x 810 x 640 |
| Test Pot | 150cc 24ea (Standard) |
| Material | (IN) : Sus 304(OUT) : Steel painting |
| Temp Control System | Digital PID Program Control(S,C,R) Touch Screen |
| Heating System | Infrared Heating System +3℃/min |
| Cooling System | Air Circulation System -5℃/min |
| Temp Accuracy | ±0.2℃ at 130℃ |
| Tem Sensor | P.T 100Ω |
| Driving Motor | 0.18kw 3￠ Geared motor |
| Speed Control | Inverter (0~60/min) |
| Pre - engage | Free Pre - engage System |
| Safety Devicev | E.L.B O.H.P Auto Stop Sensor (Door) |
| Auto - ending | Yes |
| Power Source | 220v 1￠ 50/60Hz 4.5Kw |
| Weight | 178kg |
| Model | KSL 100 -1 | KSL 100 -2 |
|---|---|---|
| Temp.Range | RT~99℃ | RT~99℃ |
| Test Tube | ￠30x250mmx22ea | (￠30x250mmx11ea)x2Bath |
| Temp. Control | Digital P.I.D Contral System | Digital P.I.D Contral System |
| Heating System | Electric Heater (2.5kw x 2ea) | Electric Heater (2.5kw x 2ea) x 2Bath |
| Driving Motor | 0.2kw Geared Motor (Japan) | 0.2kw Geared Motor (Japan) |
| Speed Contral | Inverter | Inverter |
| Material | all sus 304 | all sus 304 |
| Dimension(OUT) | 810x370x1000(WxDxH) | 910x370x1000(WxDxH) |
| Safety Devices | E.L.B Dizzet fuse | E.L.B Dizzet fuse |
| Power Source | 220v 1 ￠50/60Hz(5Kw) | 220v 1 ￠50/60Hz(6Kw) |
